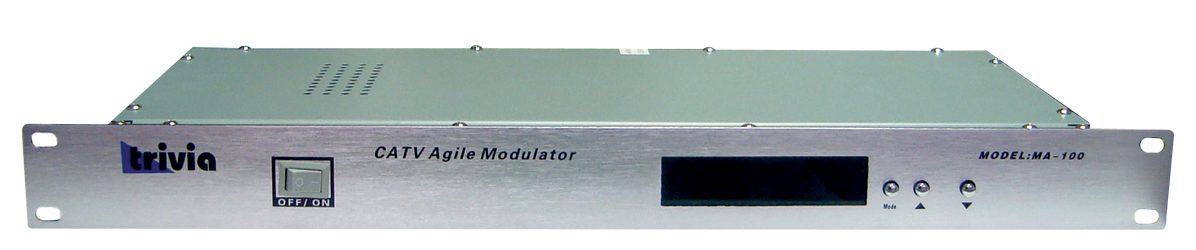

Trivia MA100 - Agile Modulator

Trivia Download PDF documentation

Summary:

• Power 220V.AC/50 Hz
• Dimension 19”(W)×12.6”(D)×1.75”(H)
• Operation Temperature -10°C~+40°C
• Weight About 3.5KG

Specifications:

• Frequency Range 45.00MHz to 870.00MHz(appointed by user )
• Frequency Stability 5 KHz
• Frequency stepping 250kHz
• Output Level 108 dB μV max
• Level Adjustment range ≥20 dB (1~32 Levels Adjustable)
• Output Impedance 75Ω
• Spurious Output -60 dB
• Output Return Loss 14 dB
• Spurious output -60dB
• C/N in band 65 dB(min 62dB)
• Adjacent Channel 65dB(min 65dB)
• Out-of-Band 60 dB(min 62dB)
